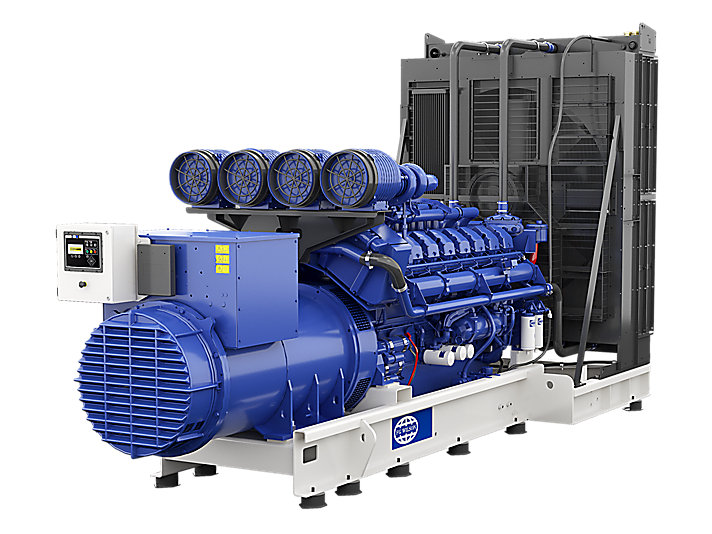

P2250-1/P2250-1E

Minimum Rating

2000.0 kVA / 1600.0 kW

Maximum Rating

2250.0 kVA / 1800.0 kW

Frequency

50Hz


SKU: 89b52bd15ce6 Categories: ,

Specifications

Overview

Proven in the field, this range of generator sets are capable of providing reliable power for critical applications including: mini power stations, data centres, large factories, airports, hospitals, large retail stores, and the financial sector. A 50oC package option is available to ensure efficient operation in high ambient temperatures. Custom-built weatherproof and acoustic enclosures can be tailored to suit any application. Providing personnel access and separate components for cooling, they make generator set installation and maintenance as quick and easy as possible.

Generator Set Specifications

Minimum Rating 2000.0 kVA / 1600.0 kW
Maximum Rating 2250.0 kVA / 1800.0 kW
Frequency 50Hz
Voltage 220-415 Volts
Speed 1500 RPM
50 Hz Prime 2000.0 kVA / 1600.0 kW
50 Hz Standby 2250.0 kVA / 1800.0 kW

Generator Set Configurations

Emissions/Fuel Strategy Standard reference conditions 25°C (77°F) Air Inlet Temp, 100m (328 ft) A.S.L. 30% relative humidity. Fuel consumption data at full load with diesel fuel with specific gravity of 0.85 and conforming to BS2869: 1998, Class A2.

Engine Specifications

Engine Model Perkins® 4016-61TRG2
Bore 160 mm (6.3 in)
Displacement 61.1l (3730.0 cu. in)
Stroke 190 mm (7.5 in)
Compression Ratio 13.0:1
Governor Type Electronic

Benefits & Features

Our Large Product Range

Our Large Product Range of generator set models is available from 730 – 2500 kVA. These generator sets are proven in the field and trusted to provide reliable power for critical applications including: mini power stations, data centres, large factories, airports, hospitals and large retail stores etc. Available with a 50oC package option, to ensure efficient operation in high ambient temperatures, this range can be customised with bespoke enclosures, cooling systems and specialised control systems through our Custom Power Solution team to suit any need.



Industry Leading Perkins Diesel Engine

The 16 cylinder Perkins 4016TRG range gives you the versatility and heavy duty performance you need in today’s power generation market. The 4016TRG range engines have exceptional power-to-weight ratio and compact design, making them easy to transport and install. The 4016-61TRG is quad turbocharged and air-to-water chargecooled



World Class Alternator

Supported by the Leroy Somer brand with their 100 years expertise in the alternator business, known worldwide for providing industry leading power generation and solutions, offering longlife products with low maintenance



PowerWizard 1.1+

The FG Wilson PowerWizard range of digital control panels, combine straightforward menu navigation with advanced metering and protection technology. They are used in automatic mains failure applications in conjunction with transfer panels. Our PowerWizard range allows you to monitor and control your generator set with ease, whilst ensuring your unit operates within safe parameters and provides important diagnostic information when needed.



Testing & Validation

Prime Rating These ratings are applicable for supplying continuous electrical power (at variable load) in lieu of commercially purchased power. There is no limitation to the annual hours of operation and this model can supply 10% overload power for 1 hour in 12 hours. Standby Rating These ratings are applicable for supplying continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted on these ratings. The alternator on this model is peak continuous rated (as defined in ISO 8528-3). Standard Reference Conditions Note: Standard reference conditions 25°C (77°F) Air Inlet Temp, 100m (328 ft) A.S.L. 30% relative humidity. Fuel consumption data at full load with diesel fuel with specific gravity of 0.85 and conforming to BS2869: 1998, Class A2.

Testing & Validation

Fully prototype tested with certified torsional vibration analysis available



World Wide Product Support

FG Wilson manufactures product in the following locations: Northern Ireland • Brazil • China • India • USA With headquarters in Northern Ireland, FG Wilson operates through a Global Dealer Network.

Equipment

P2250-1/P2250-1EStandard Equipment

Engine

  • Air Cleaner
  • Engine filled with lubrication oil
  • Low Coolant Temperature Shutdown
  • Perkins 4000, Series 6, 8, 12 and 16 cylinder engine range
  • Electronic governor
  • Engine mounted fuel/water separator
  • Lube drain valve (910 kVA to 2500 kVA)

Cooling

  • Package mounted radiator
  • Coolant Drain Valve
  • Engine mounted battery charging alternator
  • Cooling System filled with Coolant mix
  • Charge air cooled (excluding TWGs)

Exhaust

  • Industrial silencer

Fuel

  • Fuel Cooler

Alternator

  • Leroy Somer
  • AREP Excitation
  • IP23 Protection

Control Panel

  • PowerWizard 1.1+

Mounting

  • Base, Formed Steel with Single wall Fuel Tank
  • Lifting points on base frame

P2250-1/P2250-1EOptional Equipment

Exhaust

  • Industrial, Residential, Critical Silencers
  • Catalytic converters
  • Heat Exhangers
  • Special spark arrestor silencers/certification

Alternator

  • Quadrature Droop Kit (AR6)
  • Anti-Condensation Heater and Panel Circuitry (AH1)
  • Increased alternator ingress protection
  • HV alternators

Control Panels

  • PowerWizard 2.1
  • easYgen-2500, 3200, 3500
  • CompAp
  • Deep Sea
  • Customer tailored PLC System
  • Remote monitoring
  • Increased Control Panel Ingress Protection
  • Stand alone ATI transfer panel

Starting/Charging

  • Lead Acid battery (Dry)
  • Dual and air starting systems

General

  • Upgrade to Standard Set for “CE” Certification
  • Sound attenuated enclosures
  • Spring, Seismic anti-vibration mounts
  • Customer witness test
  • Remote cooling
  • 50 degree C radiator and package
  • Coolant heater
  • 4-Pole circuit breaker
  • Motorised circuit breaker
  • LV and HV switchgear

Fuel

  • Bi-fuel options (TWG and TRG only)
  • Fuel transfer systems (730 – 900 kVA)
  • Integral metal fuel tank (730 – 900 kVA)
