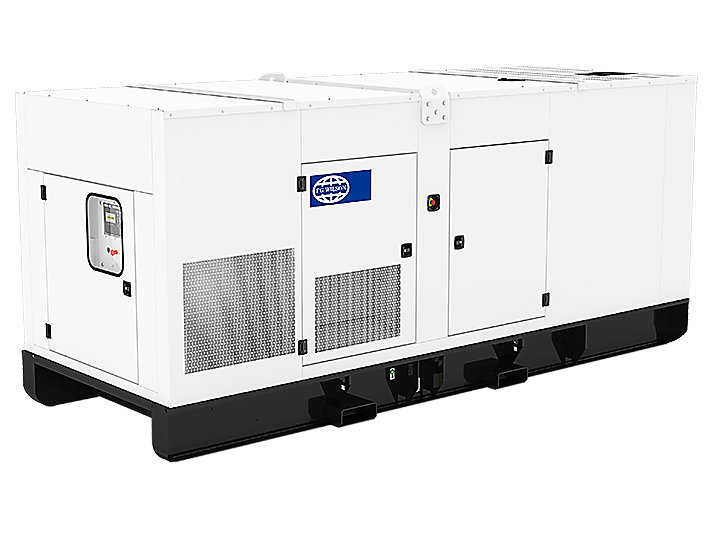

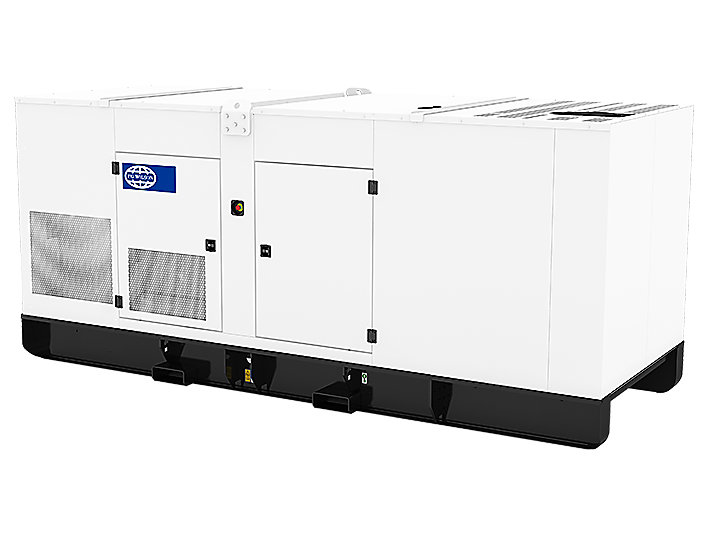

PRO300-1

Minimum Rating
240 kVA / 300 kW

Maximum Rating
275 kVA / 344 kW

Emissions/Fuel Strategy
Standard reference conditions 25°C (77°F) Air Inlet Temp, 100m (328 ft) A.S.L. 30% relative humidity. Fuel consumption data at full load with diesel fuel with specific gravity of 0.85 and conforming to BS2869: 1998, Class A2.


SKU: 2fc00a3a8edc Categories: , ,

Specifications

Overview

“The PRO Rental Range provides reliable power for today’s world with a competitive offering that delivers everything you need. Providing unrivalled quality.

Generator Set Specifications

Minimum Rating 240 kVA / 300 kW
Maximum Rating 275 kVA / 344 kW
Voltage 127-480 Volts
Frequency 50 Hz or 60 Hz
Speed 1500 / 1800 RPM
50 Hz Prime 240 kVA / 300 kW
50 Hz Standby – / –
60 Hz Prime 275 kVA / 344 kW
60 Hz Standby – / –

Generator Set Configurations

Emissions/Fuel Strategy Standard reference conditions 25°C (77°F) Air Inlet Temp, 100m (328 ft) A.S.L. 30% relative humidity. Fuel consumption data at full load with diesel fuel with specific gravity of 0.85 and conforming to BS2869: 1998, Class A2.

Engine Specifications

Engine Model Perkins® 1506A-E88TAG3
Bore 112 mm (4.4 in)
Displacement 8.8ll (537 cu. in)
Stroke 149 mm (5.9 in)
Compression Ratio 16.1:1
Governor Type Electronic



Benefits & Features

FG Wilson Diesel Engine

Perkins Engine

Alternator

Benefiting from a choice of leading alternators, the range incorporates the Leroy Somer alternator as standard across three phase models.

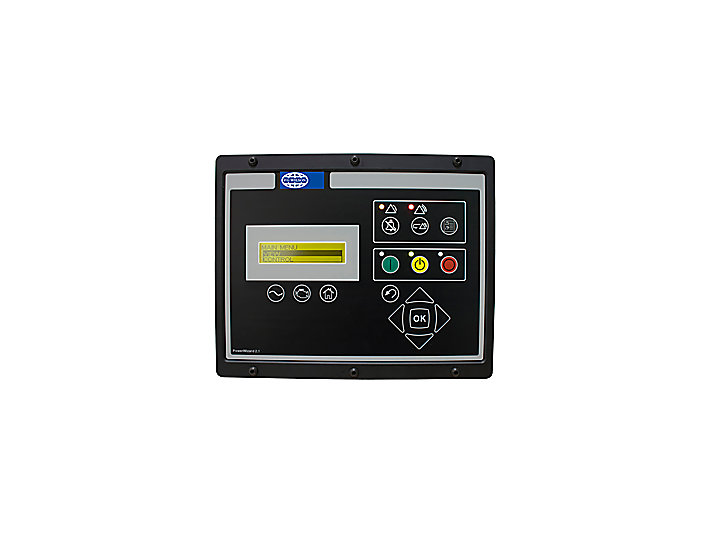

PowerWizard 2.1+

The FG Wilson PowerWizard range of digital control panels, combine straightforward menu navigation with advanced metering and protection technology. They are used in automatic mains failure applications in conjunction with transfer panels.Our PowerWizard range allows you to monitor and control your generator set with ease, whilst ensuring your unit operates within safe parameters and provides important diagnostic information when needed.

Design Criteria

Prime Rating These ratings are applicable for supplying continuous electrical power (at variable load) in lieu of commercially purchased power. There is no limitation to the annual hours of operation and this model can supply 10% overload power for 1 hour in 12 hours. Standby Rating These ratings are applicable for supplying continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted on these ratings. The alternator on this model is peak continuous rated (as defined in ISO 8528-3). Standard Reference Conditions Note: Standard reference conditions 25°C (77°F) Air Inlet Temp, 100m (328 ft) A.S.L. 30% relative humidity. Fuel consumption data at full load with diesel fuel with specific gravity of 0.85 and conforming to BS2869: 1998, Class A2.

Single-Source Supplier

Fully prototype tested with certified torsional vibration analysis available

World Wide Product Support

FG Wilson manufactures product in the following locations: Northern Ireland • Brazil • China • India • USA With headquarters in Northern Ireland, FG Wilson operates through a Global Dealer Network.

Equipment

PRO300-1 Standard Equipment

Engine

  • Air Cleaner
  • Lube oil drain valve
  • Engine filled with lubrication oil
  • High Coolant Temperature Shutdown
  • Low Oil Pressure Shutdown

Cooling

  • Cooling package mounted radiator with 50ºC high ambient capability
  • Variable speed pusher fan with guards
  • Coolant Drain Valve
  • Low coolant level shutdown.
  • 50% coolant antifreeze with corrosion inhibitor

Exhaust

  • Integrated spark arresting silencer with flexible connectors, in separate compartment

Fuel

  • 593 L single wall fuel tank, 11.3 hr runtime @ 75% prime rating, internal fuel fill
  • Engine mounted primary fuel filter (10micron) with integral water separator and water in Fuel sensor
  • Auxiliary connections for customer supplied fuel transfer with 3 way fuel transfer system, internally mounted within the bunded area.

Alternator

  • Leroy Somer
  • Coastal insulation protection
  • 230 VAC anti-condensation heater option

Control Panel

  • PowerWizard 2.1+

Mounting

  • Generator set soft mounted using captive vibration mounts
  • Heavy duty steel base frame contains integral double wall fuel tank
  • Provides 110% spill containment of all engine fluids
  • Forklift pockets and heavy duty drag bar with skid plates

PRO300-1 Optional Equipment

Alternator

  • Permanent magnet generator (PMG)

Starting/Charging

  • 24V battery charger
  • Earth Leakage

General

  • Synchronising control panel and motorised breakers
  • Low voltage 60 Hz configuration including breaker and power cables
  • Anti-condensation heater 230 VAC
  • Coolant heater 230 VAC
  • CE Labelling
