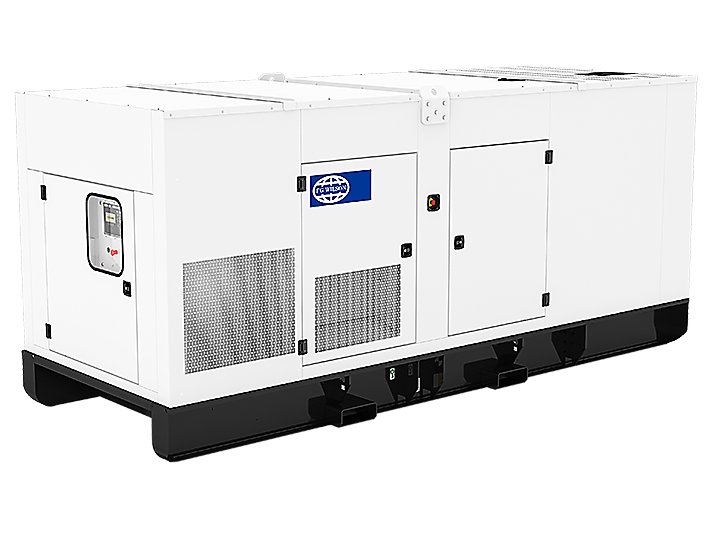

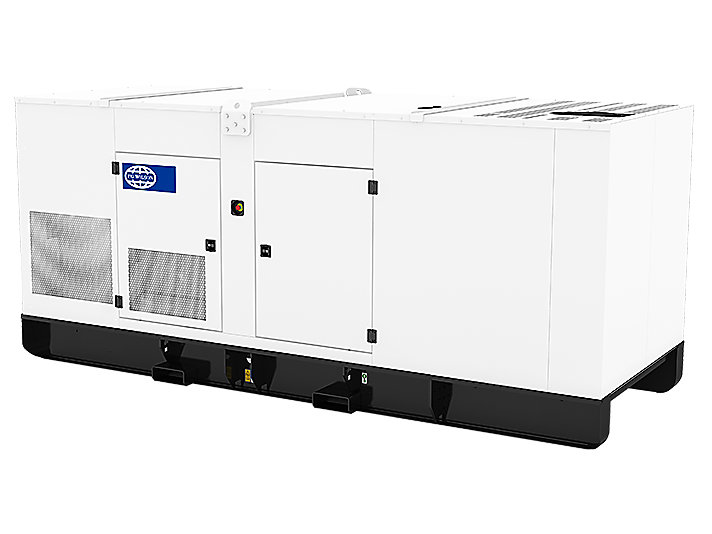

PRO500-2

Minimum Rating
500.0 kVA / 400.0 kW

Maximum Rating
525.0 kVA / 420.0 kW

Emissions/Fuel Strategy
Standard reference conditions 25°C (77°F) Air Inlet Temp, 100m (328 ft) A.S.L. 30% relative humidity. Fuel consumption data at full load with diesel fuel with specific gravity of 0.85 and conforming to BS2869: 1998, Class A2.


SKU: b1bd95fcc971 Categories: , ,

Specifications

Overview

“The PRO Rental Range provides reliable power for today’s world with a competitive offering that delivers everything you need. Providing unrivalled quality

Generator Set Specifications

Minimum Rating 500.0 kVA / 400.0 kW
Maximum Rating 525.0 kVA / 420.0 kW
Voltage 127-480 Volts
Frequency 50 Hz & 60 Hz
Speed 1500 & 1800 RPM
50 Hz Prime 500.0 kVA / 400.0 kW
50 Hz Standby – / –
60 Hz Prime 525.0 kVA / 420.0 kW
60 Hz Standby – / –

Generator Set Configurations

Emissions/Fuel Strategy Standard reference conditions 25°C (77°F) Air Inlet Temp, 100m (328 ft) A.S.L. 30% relative humidity. Fuel consumption data at full load with diesel fuel with specific gravity of 0.85 and conforming to BS2869: 1998, Class A2.

Engine Specifications

Engine Model Perkins® 2506D-E15TAG2
Bore 137 mm (5.4 in)
Displacement 15.2l (928.0 cu. in)
Stroke 171 mm (6.7 in)
Compression Ratio 16.8:1
Governor Type Electronic



Benefits & Features

FG Wilson Diesel Engine

Perkins Engine

Alternator

Benefiting from a choice of leading alternators, the range incorporates the Leroy Somer alternator as standard across three phase models.

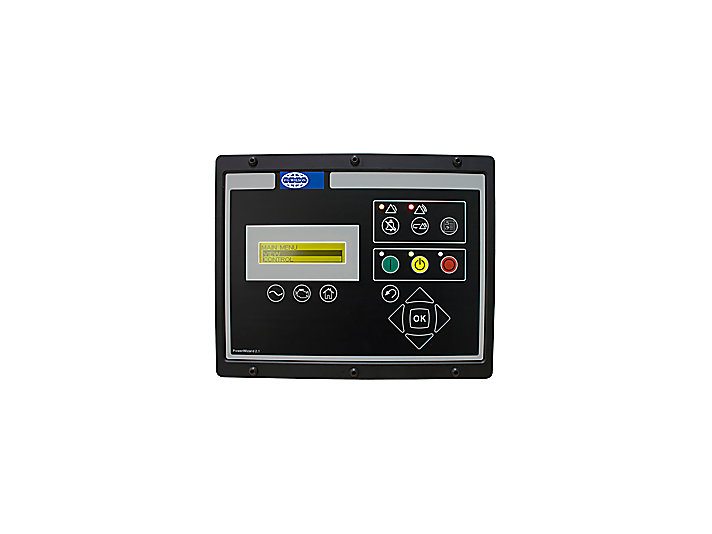

PowerWizard 2.1+

The FG Wilson PowerWizard range of digital control panels, combine straightforward menu navigation with advanced metering and protection technology. They are used in automatic mains failure applications in conjunction with transfer panels.

Design Criteria

Prime Rating These ratings are applicable for supplying continuous electrical power (at variable load) in lieu of commercially purchased power. There is no limitation to the annual hours of operation and this model can supply 10% overload power for 1 hour in 12 hours. Standby Rating These ratings are applicable for supplying continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted on these ratings. The alternator on this model is peak continuous rated (as defined in ISO 8528-3). Standard Reference Conditions Note: Standard reference conditions 25°C (77°F) Air Inlet Temp, 100m (328 ft) A.S.L. 30% relative humidity. Fuel consumption data at full load with diesel fuel with specific gravity of 0.85 and conforming to BS2869: 1998, Class A2.

Single-Source Supplier

Fully prototype tested with certified torsional vibration analysis available

World Wide Product Support

FG Wilson manufactures product in the following locations: Northern Ireland • Brazil • China • India • USA With headquarters in Northern Ireland, FG Wilson operates through a Global Dealer Network.

Equipment

PRO500-2Standard Equipment

Engine

  • Air Cleaner
  • Lube oil drain valve
  • Engine filled with lubrication oil
  • High Coolant Temperature Shutdown
  • Low Oil Pressure Shutdown

Cooling

  • Cooling package mounted radiator with high ambient capability
  • Coolant Drain Valve
  • 50% coolant antifreeze with corrosion inhibitor
  • Pusher fan with guards

Exhaust

  • Integrated spark arresting silencer with flexible connectors, in separate compartment

Fuel

  • 1061 L double wall fuel tank, 11 hr runtime @ 75% prime rating
  • Auxiliary connections for customer supplied fuel transfer with 3 way fuel transfer system, internally mounted within the bunded area.

Alternator

  • Leroy Somer
  • SHUNT Excitation
  • IP23 Protection

Control Panel

  • PowerWizard 2.1+

Mounting

  • Generator set soft mounted using captive vibration mounts
  • Heavy duty steel base frame contains integral fuel tank
  • Forklift pockets and heavy duty drag bar with skid plates
  • Battery Tray and Cables

PRO500-2Optional Equipment

Starting/Charging

  • 24V battery charger

General

  • CE labelling
  • Anti-condensation heater 230 VAC
  • Coolant heater 230 VAC
  • Earth Leakage
  • Lube oil sump pump

Control Panel

  • Synchronising control panel and motorised breakers

Alternator

  • Permanent Magnet Generator (PMG)
