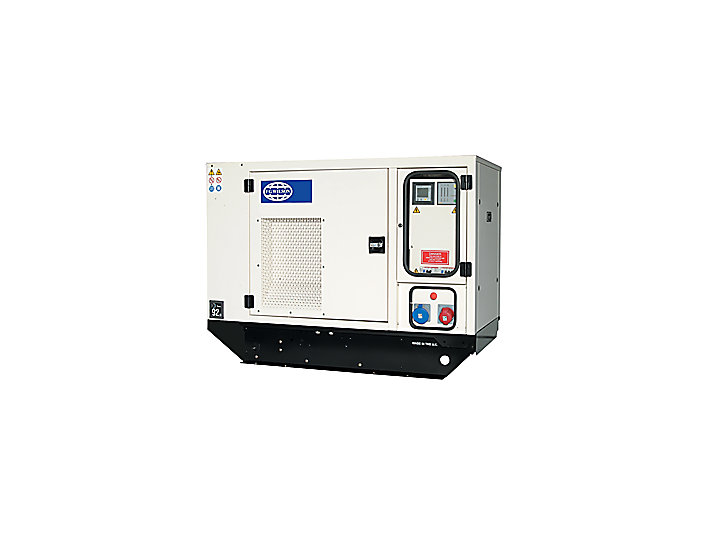

XD20P4

Minimum Rating

Maximum Rating

Frequency


SKU: f58ff0d22ece Categories: , ,

Specifications

Overview

The FG Wilson rental range of generator sets are used by rental fleet owners in a wide variety of applications where temporary power needs exist including telecommunications, manufacturing, events and construction.

Generator

Standby Rating
Prime Rating 20 kVA (16 kW)
Frequency 50 Hz
Standby Run Time (Full Load)
Prime Run Time (Full Load) 8.5 Hours

Engine

Engine Perkins® 404D-22G
Fuel Diesel

Dimensions

Width 950mm (37.4 in)
Height 1485 mm (58.5 in)
Length 1685 mm (66.3 in)
Weight 744 kg (1640 lb)



Benefits & Features

Fuel / Emissions Strategy

EUIIIa Emissions Compliant

Generator Set

  1. EUIIIa Emissions Compliant
  2. Complete System Designed And Built At ISO 9001 Certified Facility
  3. Factory Tested To Design Specifications At Full Load Conditions

Engine

  1. Governor, Mechanical
  2. Electrical System, 12V DC
  3. Cartridge Type Filters
  4. Fuel/Water Separator
  5. Battery, Rack And Cables

Alternator

  1. Insulation System, Class H
  2. Screen Protected And Drip-Proof, Self Exciting, Self-Regulating With Fully Interconnected Damper Windings, IC06 Cooling System And Sealed-For-Life Bearings
  3. Electrical Design In Accordance With BS5000 Part 99, IEC60034-1, EN61000-6, NEMA MG-1.22

Control System

  1. Manual/Autostart Control Panel
  2. Vibration Isolated, NEMA 1 Enclosure With Lockable Hinged Door
  3. DC And AC Wiring Harnesses

Multi-Voltage System

  1. Switchable Voltage Output:
    1. 480/277V 3 phase
    2. 208/120V 3 phase
    3. 240/120V 1 phase
  2. Convenience Receptacles
  3. Hinged Door Over Main Connectors
  4. NEMA 1 Steel Enclosure, Vibration Isolated

Circuit Breaker

Dual, 3-Pole With Solid Neutral, UL/CSA Listed

Mounting Arrangement

  1. Heavy-Duty Fabricated Steel Base Raised For Forklift Access
  2. Anti-Vibration Mounting Pads
  3. Complete OSHA Guarding
  4. Three-Way Valves To Allow Connection Of Auxiliary Fuel Tank
  5. UL Listed Single Walled Fuel Tank Base With 24 Hour Minimum Fuel Supply.
  6. Containment Area For Oil, Coolant And Fuel Spill.

Sound Attenuated Enclosure

  1. Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer
  2. Highly Corrosion Resistant Construction

Body made from sheet steel components pretreated with zinc phosphate prior to polyester powder coating at 200° C (392° F)

Equipment Finish

  1. All Electroplated Hardware
  2. Anti-Corrosive Protection Prior To Painting
  3. High Gloss Polyurethane Paint For Durability And Scuff Resistance

Documentation

  1. Operation And Maintenance Manuals Provided
  2. Wiring Diagrams Included
  3. WARRANTY

All equipment carries full manufacturers warranty

Automatic Voltage Regulator

Voltage within the limits of +/- 0.5% for 3 Phase and +/- 1% for Single Phase operation at steady state from no load to full load

Quality Standards

IEC60034, EN61000-6, NEMA MG-1.22

Equipment

XD20P4Standard Equipment

Galvanized Sound Attenuated Enclosure

System 4 Alternator

DeepSea

3-Way Fuel Valve

24 Hour Fuel Tank

  • Low Fuel Level Shutdown

XD20P4Optional Equipment

Engine

  • Fuel tank – UL listed double wall tank base with 24 hour minimum supply
  • Battery charger
  • Electronic Governor required for operation at 60 Hz

Alternator

  • Anti-Condensation Heater

Cooling System

  • Engine Water heaters

Miscellaneous Accessories

  • Additional operator’s manual pack
